Aluminium Sheets in Coimbatore

ASME SB209 Aluminium Plain Sheets Stockist in Coimbatore, Aluminium Sheets Supplier in Coimbatore, Aluminium Sheets in Coimbatore.

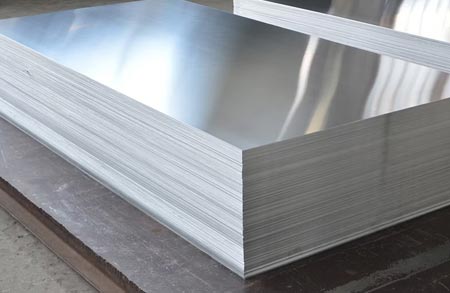

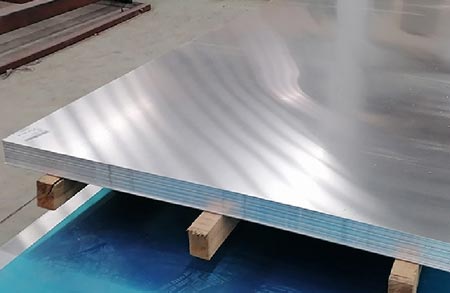

Aluminium Sheets

Jagdish Metal is one of the major suppliers and exporters of high-quality aluminum sheets in Coimbatore. An aluminium sheet is a flat rolled sheet from high-purity aluminum. It has extensive uses in construction, transport, aerospace and packaging sectors because of its high corrosion resistance, light weight and formability. With years of experience in the metal sector, we are committed to providing high-quality aluminium sheets to all the major cities in Coimbatore, including Pollachi, Mettupalayam, Tiruppur, and Palladam.

We supply aluminium sheets in a variety of grades, including 1050, 1060, 1070, 1100, 2014, 2017, 2024, 3003, 5005, 5052, 5754, 5082, 5083, 5086, 6061, 6063, 6082, 6083, 7050, and 7075. These sheets come in varying sizes, thicknesses and surface finishes such as mill finish, anodized, etc. We also provide sheets in standard and customized sizes to fulfill the particular requirements of our clients. Being an ISO 9001:2008 certified company, we guarantee high-quality standards and international compliance.

Our aluminium sheets undergo rigorous testing processes, including tensile testing, hardness testing, and chemical composition analysis to guarantee their performance and durability. We use high-quality packaging materials to protect the sheets from any damage during transportation, ensuring they reach our clients in perfect condition.

With years of experience in the industry, we understand the significance of timely delivery, and our efficient shipping process guarantees quick and safe transportation. Whether you need bulk quantities or custom-sized sheets, we are here to meet your needs with precision and reliability.

Aluminum Sheets Specification in Coimbatore

Standards : ASTM B209 / ASME SB209 / IS 737 / EN Standards

Temper : O, H12, H14, H16, H18, H19, H22, H24

Thickness : 0.2-50

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish : Mill, Customer specific finish

Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Available Grades : 1050, 1060, 1070, 1100, 2014, 2017, 2024, 2024 T3511, 3003, 5005, 5052, 5754, 5082, 5083, 5086, 6061, 6063, 6082, 6083, 7050, 7075

Types of Aluminium Sheets in Coimbatore

Aluminium Hot Rolled Sheets
Aluminium Chequered Sheet in Coimbatore
Aluminium Cold Rolled Sheets
1200 Aluminium Sheet in Coimbatore
Aluminium Cold Rolled Sheets
Aluminium 8011 Sheet in Coimbatore
Aluminium Cold Rolled Sheets
7075 T6 Aluminium Sheet in Coimbatore
Aluminium Cold Rolled Sheets
6061 T6 Aluminum Sheet in Coimbatore
Aluminium Cold Rolled Sheets
2024 T6 Aluminum Sheet in Coimbatore
Aluminium Cold Rolled Sheets
2014 T6 Aluminium Sheet in Coimbatore
Aluminium Cold Rolled Sheets
5754 Aluminum Sheet in Coimbatore
Aluminium Cold Rolled Sheets
5083 Aluminum Sheet in Coimbatore
Aluminium Cold Rolled Sheets
5086 Aluminium Sheet in Coimbatore
Aluminium Cold Rolled Sheets
5052 Aluminum Sheet in Coimbatore
Aluminium Cold Rolled Sheets
6082 T6 Aluminum Sheet in Coimbatore

Specifications for Aluminium Sheets in Coimbatore:

European Standard BS (OLD) USA (AA) GERMANY (DIN) ISO IS Canadian
EN AW-1050 A 1E 1050 Al99.5 Al99.5 19500, 19501 1 S
EN AW-1070 A – 1070 Al-99.7 Al-99.7 19700 –
EN AW-1100 IC 1100 Al-99.0 Al-99.0 19000 2 S
EN AW-2011 FC1 2011 AlCuBiPb AlCu6BiPb – 28S
EN AW-2014 HE15 2014 AlCuSiMn AlCu4SiMg 24345 B26S
EN AW-2024 – 2024 AlCuMg2 AlCu4Mg1 – 24 S
EN AW-3003 N3 3003 AlMnCu AlMn1Cu 31000 3 S
EN AW-3103 – 3103 – AlMn1 – –
EN AW-6101A E91E 6101 E AlMgSi 0.5 E AlMgSi(A) 63401 D50S
EN AW-6005 – 6005 AlMgSi0.7 AlSiMg 62400 C51S
EN AW-6351 HE30 6351 AlMgSi1 AlSiMg0.5Mn 64430 B51S
EN AW-6060 – 6060 AlMgSi 0.5 AlMgSi – –
EN AW-6061 HE20 6061 AlMgSiCu AlMg1SiCu 65032 65S
EN AW-6063 HE9 6063 AlMgSi0.5 AlMg0.7Si 63400 50S
EN AW-6082 HE30 6351 AlMgSi1 AlSi1MgMn 64430 B51S

Chemical Composition of Aluminium Sheets in Coimbatore

Alloy Si % Mg % Mn % Cu % Fe % Cr % Zn % Ti % Others % Al
EN AW-1050 A 0.25 Max 0.05 Max 0.05 Max 0.05 Max 0.40 Max – 0.07 Max 0.05 Max – 99.5 Min
EN AW-1070 A 0.20 Max 0.03 Max 0.03 Max 0.03 Max 0.25 Max – 0.07 Max 0.03 Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – Bi: 0.20 – 0.60
Pb: 0.20 – 0.60		 Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 – 1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 – 1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder

Mechanical Properties of Aluminium Sheets in Coimbatore

Alloy Temper UTS (MPa)
Min		 UTS (MPa)
Max		 Yield Strength (MPa)
Min		 Yield Strength (MPa)
Max		 Elongation %
(A50mm Min)
EN AW-1050 A F 60 – 20 – 23
EN AW-1050 A O 60 95 20 – 23
EN AW-1070 A F 60 – 20 – 23
EN AW-1100 O 75 110 – – 25
EN AW-2011 T4 275 – 125 – 12
EN AW-2011 T6 310 – 230 – 6
EN AW-2014 O – 250 – 135 10
EN AW-2014 T4 370 – 230 – 11
EN AW-2014 T6 415 – 370 – 5
EN AW-2024 O – 250 – 150 10
EN AW-2024 T3, T3510, T3511 395 – 290 – 6
EN AW-2024 T8, T8510, T8511 455 – 380 – 4
EN AW-3003 F 95 – 35 – 20
EN AW-3003 O 95 135 35 – 20
EN AW-3103 F 95 – 35 – 20
EN AW-3103 O 95 135 35 – 20
EN AW-6101A T6 200 – 170 – 8
EN AW-6005 T4 180 – 90 – 13
EN AW-6005 T6 270 – 225 – 6
EN AW-6351 O – 160 – 110 12
EN AW-6351 T4 205 – 110 – 12
EN AW-6351 T6 290 – 250 – 6
EN AW-6060 T4 120 – 60 14 12
EN AW-6060 T5 160 – 120 – 6
EN AW-6060 T6 190 – 150 – 6
EN AW-6060 T64 180 – 120 – 10
EN AW-6060 T66 215 – 160 – 6
EN AW-6061 O – 150 – 110 14
EN AW-6061 T4 180 – 110 – 13
EN AW-6061 T6 260 – 240 – 6
EN AW-6063 O – 130 – – 16
EN AW-6063 T4 130 – 65 – 12
EN AW-6063 T5 175 – 130 – 6
EN AW-6063 T6 215 – 170 – 6
EN AW-6063 T66 245 – 200 – 6
EN AW-6082 O – 160 – 110 12
EN AW-6082 T4 205 – 110 – 12
EN AW-6082 T5 270 – 230 – 6
EN AW-6082 T6 290 – 250 – 6
