Aluminium Fittings in Coimbatore, ASME SB361 Aluminium Fittings Stockist in Coimbatore, Aluminium Fittings Supplier in Coimbatore.
Jagdish Metal is a leading Aluminium fittings supplier and exporter in Coimbatore, offering a wide range of aluminium fittings designed to meet diverse industrial requirements. Aluminium fittings are essential in piping systems for connecting, terminating, controlling flow, and changing pipe directions. Available in various types such as elbows, tees, reducers, couplings, and more, these fittings are widely utilised for their lightweight nature and exceptional corrosion resistance. We ensure the swift delivery of our high-quality aluminium fittings to Coimbatore and its surrounding areas, including Peelamedu, Gandhipuram, Saibaba Colony, Singanallur, and Avinashi Road.
Our range of aluminium fittings is available in both standard sizes and custom specifications to suit the unique needs of our clients. Being an ISO 9001:2008 company, we assure that each fittings conform to international quality standards. We provide aluminium fittings in a variety of grades, such as 6061, 6063, 6082, 1100, 5083, and 7075 that are known for their distinct features and uses. Our fittings follow international standards such as ASME B16.9 and ASTM B24. Having years of experience in the industry, we provide aluminium fittings that are renowned for their reliability, strength, and accurate engineering.
These fittings are used across multiple industries, including construction, automotive, marine, aerospace, and chemical processing. Their high strength, corrosion resistance, and light weight make them suitable for challenging applications. They are made to endure high pressure and extreme environmental conditions, providing long-lasting performance and reliability.
We are committed to providing our customers with high-quality aluminium fittings that are thoroughly tested and securely packaged. Each product goes through rigorous testing procedures, including hydrostatic testing, pressure testing, and visual inspection, to ensure compliance with industry standards. We also prioritize secure packaging to prevent any damage during transit, guaranteeing that the products arrive in perfect condition.
Standards : ASTM B361, ASTM B247, ASME SB361, EN, DIN

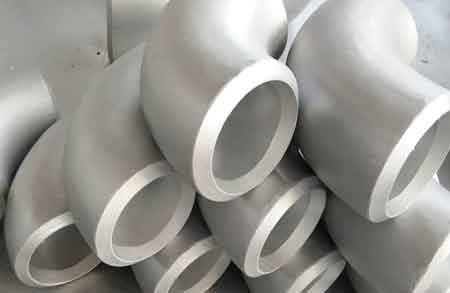

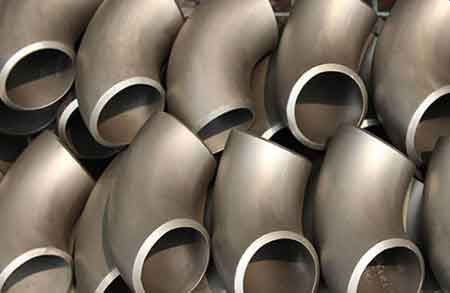

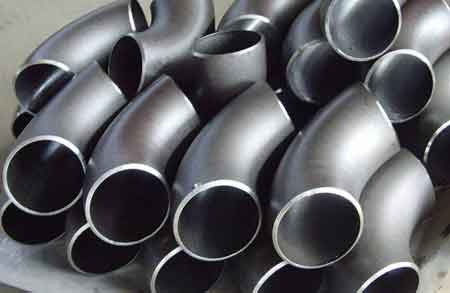

Types of Fittings : Elbow (90°, 45°), Tee, Reducer, Coupling, Cross, Cap
Connection Types : Butt Weld, Threaded (NPT/BSP), Socket Weld
Sizes Available : ½" to 12" (15mm to 300mm) or custom sizes
Wall Thickness : SCH 5, SCH 10, SCH 40, SCH 80
Temper / Condition : T6, O, H112, F
Surface Finish : Mill Finish, Anodized, Polished
Pressure Ratings : Varies by fitting type and schedule (SCH)
Applications : Chemical processing, marine, aerospace, HVAC, oil & gas
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| EN AW-1070 A | – | 1070 | Al-99.7 | Al-99.7 | 19700 | – |
| EN AW-1100 | IC | 1100 | Al-99.0 | Al-99.0 | 19000 | 2 S |
| EN AW-2011 | FC1 | 2011 | AlCuBiPb | AlCu6BiPb | – | 28S |
| EN AW-2014 | HE15 | 2014 | AlCuSiMn | AlCu4SiMg | 24345 | B26S |
| EN AW-2024 | – | 2024 | AlCuMg2 | AlCu4Mg1 | – | 24 S |
| EN AW-3003 | N3 | 3003 | AlMnCu | AlMn1Cu | 31000 | 3 S |
| EN AW-3103 | – | 3103 | – | AlMn1 | – | – |
| EN AW-6101A | E91E | 6101 | E AlMgSi 0.5 | E AlMgSi(A) | 63401 | D50S |
| EN AW-6005 | – | 6005 | AlMgSi0.7 | AlSiMg | 62400 | C51S |
| EN AW-6351 | HE30 | 6351 | AlMgSi1 | AlSiMg0.5Mn | 64430 | B51S |
| EN AW-6060 | – | 6060 | AlMgSi 0.5 | AlMgSi | – | – |
| EN AW-6061 | HE20 | 6061 | AlMgSiCu | AlMg1SiCu | 65032 | 65S |
| EN AW-6063 | HE9 | 6063 | AlMgSi0.5 | AlMg0.7Si | 63400 | 50S |
| EN AW-6082 | HE30 | 6351 | AlMgSi1 | AlSi1MgMn | 64430 | B51S |
| Alloy | Si % | Mg % | Mn % | Cu % | Fe % | Cr % | Zn % | Ti % | Others % | Al % |
|---|---|---|---|---|---|---|---|---|---|---|
| EN AW-1050 A | 0.25 Max | 0.05 Max | 0.05 Max | 0.05 Max | 0.40 Max | – | 0.07 Max | 0.05 Max | – | 99.5 Min |
| EN AW-1070 A | 0.20 Max | 0.03 Max | 0.03 Max | 0.03 Max | 0.25 Max | – | 0.07 Max | 0.03 Max | – | 99.7 Min |
| EN AW-1100 | Si+Fe 0.95 Max | – | 0.05 Max | 0.05 – 0.20 | – | – | 0.10 Max | 0.05 Max | – | 99.0 Min |
| EN AW-2011 | 0.40 Max | – | – | 5.00 – 6.00 | 0.70 Max | – | 0.30 Max | – | Bi: 0.20 – 0.60, Pb: 0.20 – 0.60 | Remainder |
| EN AW-2014 | 0.50 – 1.20 | 0.20 – 0.80 | 0.40 – 1.20 | 3.90 – 5.00 | 0.70 Max | 0.10 Max | 0.25 Max | 0.15 Max | – | Remainder |
| EN AW-2024 | 0.50 Max | 1.20 – 1.80 | 0.30 – 0.90 | 3.80 – 4.90 | 0.50 Max | 0.10 Max | 0.25 Max | 0.15 Max | 0.15 Max | Remainder |
| EN AW-3003 | 0.60 Max | – | 1.00 – 1.50 | 0.05 – 0.20 | 0.70 Max | – | 0.10 Max | – | 0.15 Max | Remainder |
| EN AW-3103 | 0.50 Max | 0.30 Max | 0.90 – 1.50 | 0.10 Max | 0.70 Max | 0.10 Max | 0.20 Max | 0.10 Max | – | Remainder |
| EN AW-6101A | 0.30 – 0.70 | 0.40 – 0.90 | 0.03 Max | 0.05 Max | 0.40 Max | – | – | – | 0.10 Max | Remainder |
| EN AW-6005 | 0.60 – 0.90 | 0.40 – 0.60 | 0.10 Max | 0.10 Max | 0.35 Max | 0.10 Max | 0.10 Max | 0.10 Max | – | Remainder |
| EN AW-6351 | 0.70 – 1.30 | 0.40 – 0.80 | 0.40 – 0.80 | 0.10 Max | 0.50 Max | – | 0.20 Max | 0.20 Max | 0.15 Max | Remainder |
| EN AW-6060 | 0.30 – 0.60 | 0.35 – 0.60 | 0.10 Max | 0.10 Max | 0.10 – 0.30 | 0.05 Max | 0.15 Max | 0.10 Max | – | Remainder |
| EN AW-6061 | 0.40 – 0.80 | 0.80 – 1.20 | 0.15 Max | 0.15 – 0.40 | 0.70 Max | 0.04 – 0.35 | 0.25 Max | 0.15 Max | – | Remainder |
| EN AW-6063 | 0.20 – 0.60 | 0.45 – 0.90 | 0.10 Max | 0.10 Max | 0.35 Max | 0.10 Max | 0.10 Max | 0.10 Max | – | Remainder |
| EN AW-6082 | 0.70 – 1.30 | 0.60 – 1.20 | 0.40 – 1.00 | 0.10 Max | 0.50 Max | 0.25 Max | 0.20 Max | 0.10 Max | – | Remainder |
| Alloy | Temper | UTS (MPa) Min |
UTS (MPa) Max |
Yield Strength (MPa) Min |
Yield Strength (MPa) Max |
Elongation (%) A50mm Min |
|---|---|---|---|---|---|---|
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
| EN AW-1070 A | F | 60 | – | 20 | – | 23 |
| EN AW-1100 | O | 75 | 110 | – | – | 25 |
| EN AW-2011 | T4 | 275 | – | 125 | – | 12 |
| T6 | 310 | – | 230 | – | 6 | |
| EN AW-2014 | O | – | 250 | – | 135 | 10 |
| T4 | 370 | – | 230 | – | 11 | |
| T6 | 415 | – | 370 | – | 5 | |
| EN AW-2024 | O | – | 250 | – | 150 | 10 |
| T3, T3510, T3511 | 395 | – | 290 | – | 6 | |
| T8, T8510, T8511 | 455 | – | 380 | – | 4 | |
| EN AW-3003 | F | 95 | – | 35 | – | 20 |
| O | 95 | 135 | 35 | – | 20 | |
| EN AW-3103 | F | 95 | – | 35 | – | 20 |
| O | 95 | 135 | 35 | – | 20 | |
| EN AW-6101A | T6 | 200 | – | 170 | – | 8 |
| EN AW-6005 | T4 | 180 | – | 90 | – | 13 |
| T6 | 270 | – | 225 | – | 6 | |
| EN AW-6351 | O | – | 160 | – | 110 | 12 |
| T4 | 205 | – | 110 | – | 12 | |
| T6 | 290 | – | 250 | – | 6 | |
| EN AW-6060 | T4 | 120 | – | 60 | 14 | 12 |
| T5 | 160 | – | 120 | – | 6 | |
| T6 | 190 | – | 150 | – | 6 | |
| T64 | 180 | – | 120 | – | 10 | |
| T66 | 215 | – | 160 | – | 6 | |
| EN AW-6061 | O | – | 150 | – | 110 | 14 |
| T4 | 180 | – | 110 | – | 13 | |
| T6 | 260 | – | 240 | – | 6 | |
| EN AW-6063 | O | – | 130 | – | – | 16 |
| T4 | 130 | – | 65 | – | 12 | |
| T5 | 175 | – | 130 | – | 6 | |
| T6 | 215 | – | 170 | – | 6 | |
| T66 | 245 | – | 200 | – | 6 | |
| EN AW-6082 | O | – | 160 | – | 110 | 12 |
| T4 | 205 | – | 110 | – | 12 | |
| T5 | 270 | – | 230 | – | 6 | |
| T6 | 290 | – | 250 | – | 6 |
