Aluminium Sheets in Qatar
Aluminium Sheets Supplier in Qatar, Aluminium Sheets in Qatar, ASME SB209 Aluminium Plain Sheets Stockist in Qatar.
Jagdish Metal is a leading Aluminium sheet supplier and exporter in Qatar, providing high-quality aluminium sheets to meet the diverse needs of various industries such as transportation, aviation, and several other industries. We provide aluminium sheets in various forms to ensure versatility and reliability in all projects. We supply aluminium sheets to numerous cities in Qatar, such as Doha, Al Rayyan, Al Wakrah, Umm Salal, and so on. Our commitment to quality and customer satisfaction has made us a trusted name in the region, supplying aluminium sheets that meet international standards and client expectations.
Our product range includes a wide selection of grades to cater to different industrial requirements. The aluminium sheet comes in different grades, including 1050, 1060, 1070, 1100, 2014, 2017, 2024, 3003, 5005, 5052, 5754, 5082, 5083, 5086, 6061, 6063, 6082, 6083, 7050, and 7075. We supply these sheets in both custom sizes and standard dimensions to match the specific needs of our customers. Additionally, we ensure fast and efficient delivery to Qatar, enabling our clients to maintain smooth operations without delays.
We prioritise quality and reliability in every aspect of our service. Our sheets of aluminium are subjected to stringent testing procedures such as hardness tests, flattening tests, micro and macro tests and intergranular corrosion tests in order to ensure durability and performance. Our packaging is secure and robust, designed to protect the aluminium sheets during transit.
With years of experience in the metal industry, we have established ourselves as a dependable source for premium aluminium sheets. We are ISO 9001:2008 certified, which proves our dedication towards quality assurance and customer satisfaction. Our aluminum sheets come in various sizes, thicknesses, and surface finishes such as mill finish, anodised, and others to meet different industrial uses. Focusing on quick shipping, superior service, and high-quality sheet, makes us a first choice among industries in the region.
Aluminum Sheets Specification in Qatar
| Standard : | ASTM B209 / ASME SB209 / IS 737 / EN Standards |
| Temper : | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness : | 0.2-50 |
| Width : | 100-2600 |
| Length : | 500-10000 |
| Surface : | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish : | Mill, Customer specific finish |
| Coating : | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type : | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Available Grades : | 1050, 1060, 1070, 1100, 2014, 2017, 2024, 2024 T3511, 3003, 5005, 5052, 5754, 5082, 5083, 5086, 6061, 6063, 6082, 6083, 7050, 7075 |
Types of Aluminium Sheets in Qatar
Aluminium Chequered Sheet in Qatar
1200 Aluminium Sheet in Qatar

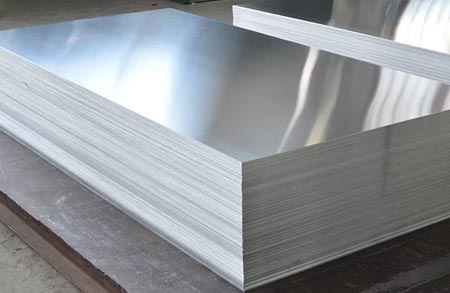

Aluminium 8011 Sheet in Qatar
7075 T6 Aluminium Sheet in Qatar
6061 T6 Aluminum Sheet in Qatar

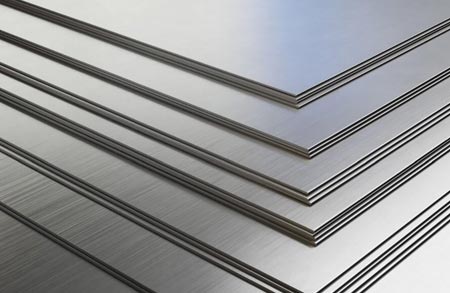

2024 T6 Aluminum Sheet in Qatar
2014 T6 Aluminium Sheet in Qatar
5754 Aluminum Sheet in Qatar
5083 Aluminum Sheet in Qatar
5086 Aluminium Sheet in Qatar
5052 Aluminum Sheet in Qatar

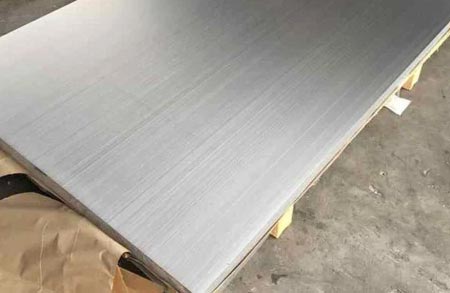

6082 T6 Aluminum Sheet in Qatar
Specifications for Aluminium Sheets in Qatar
| European Standard |
BS (OLD) | USA (AA) | GERMANY (DIN) |
ISO | IS | Canadian |
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| EN AW-1070 A | – | 1070 | Al-99.7 | Al-99.7 | 19700 | – |
| EN AW-1100 | IC | 1100 | Al-99.0 | Al-99.0 | 19000 | 2 S |
| EN AW-2011 | FC1 | 2011 | AlCuBiPb | AlCu6BiPb | – | 28S |
| EN AW-2014 | HE15 | 2014 | AlCuSiMn | AlCu4SiMg | 24345 | B26S |
| EN AW-2024 | – | 2024 | AlCuMg2 | AlCu4Mg1 | – | 24 S |
| EN AW-3003 | N3 | 3003 | AlMnCu | AlMn1Cu | 31000 | 3 S |
| EN AW-3103 | – | 3103 | – | AlMn1 | – | – |
| EN AW-6101A | E91E | 6101 | E AlMgSi 0.5 | E AlMgSi(A) | 63401 | D50S |
| EN AW-6005 | – | 6005 | AlMgSi0.7 | AlSiMg | 62400 | C51S |
| EN AW-6351 | HE30 | 6351 | AlMgSi1 | AlSiMg0.5Mn | 64430 | B51S |
| EN AW-6060 | – | 6060 | AlMgSi 0.5 | AlMgSi | – | – |
| EN AW-6061 | HE20 | 6061 | AlMgSiCu | AlMg1SiCu | 65032 | 65S |
| EN AW-6063 | HE9 | 6063 | AlMgSi0.5 | AlMg0.7Si | 63400 | 50S |
| EN AW-6082 | HE30 | 6351 | AlMgSi1 | AlSi1MgMn | 64430 | B51S |
Chemical Composition of Aluminium Sheets in Qatar
| Alloy | % Si |
% Mg |
% Mn |
% Cu |
% Fe |
% Cr |
% Zn |
% Ti |
% Others |
% Al |
| EN AW-1050 A | 0.25 Max |
0.05 Max |
0.05 Max |
0.05 Max |
0.40 Max |
– | 0.07 Max |
0.05 Max |
– | 99.5 Min |
| EN AW-1070 A | 0.20 Max |
0.03 Max |
0.03 Max |
0.03 Max |
0.25 Max |
– | 0.07 Max |
0.03 Max |
– | 99.7 Min |
| EN AW-1100 | Si+Fe 0.95 Max | – | 0.05 Max | 0.05 – 0.20 | – | – | 0.10 Max | 0.05 Max | – | 99.0 Min |
| EN AW-2011 | 0.40 Max | – | – | 5.00 – 6.00 | 0.70 Max | – | 0.30 Max | – | Bi : 0.20 – 0.60 Pb : 0.20 – 0.60 |
Remainder |
| EN AW-2014 | 0.50 – 1.20 | 0.20 – 0.80 | 0.40 – 1.20 | 3.90 – 5.00 | 0.70 Max | 0.10 Max | 0.25 Max | 0.15 Max | – | Remainder |
| EN AW-2024 | 0.50 Max | 1.20 -1.80 | 0.30 – 0.90 | 3.80 – 4.90 | 0.50 Max | 0.10 Max | 0.25 Max | 0.15 Max | 0.15 Max | Remainder |
| EN AW-3003 | 0.60 Max | – | 1.00 – 1.50 | 0.05 – 0.20 | 0.70 Max | – | 0.10 Max | – | 0.15 Max | Remainder |
| EN AW-3103 | 0.50 Max | 0.30 Max | 0.90 – 1.50 | 0.10 Max | 0.70 Max | 0.10 Max | 0.20 Max | 0.10 Max | – | Remainder |
| EN AW-6101A | 0.30 – 0.7 | 0.40 – 0.90 | 0.03 Max | 0.05 Max | 0.40 Max | – | – | – | 0.10 Max | Remainder |
| EN AW-6005 | 0.60 – 0.90 | 0.40 – 0.60 | 0.10 Max | 0.10 Max | 0.35 Max | 0.10 Max | 0.10 Max | 0.10 Max | – | Remainder |
| EN AW-6351 | 0.70 – 1.30 | 0.40 – 0.80 | 0.40 – 0.80 | 0.10 Max | 0.50 Max | – | 0.20 Max | 0.20 Max | 0.15 Max | Remainder |
| EN AW-6060 | 0.30 – 0.60 | 0.35 – 0.60 | 0.10 Max | 0.10 Max | 0.10 – 0.30 | 0.05 Max | 0.15 Max | 0.10 Max | – | Remainder |
| EN AW-6061 | 0.40 – 0.80 | 0.80 – 1.20 | 0.15 Max | 0.15 – 0.40 | 0.70 Max | 0.04 – 0.35 | 0.25 Max | 0.15 Max | – | Remainder |
| EN AW-6063 | 0.20 – 0.60 | 0.45 – 0.90 | 0.10 Max | 0.10 Max | 0.35 Max | 0.10 Max | 0.10 Max | 0.10 Max | – | Remainder |
| EN AW-6082 | 0.70 – 1.30 | 0.60 -1.20 | 0.40 – 1.00 | 0.10 Max | 0.50 Max | 0.25 Max | 0.20 Max | 0.10 Max | – | Remainder |
Mechanical Properties of Aluminium Sheets in Qatar
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
| EN AW-1070 A | F | 60 | – | 20 | – | 23 |
| EN AW-1100 | O | 75 | 110 | – | – | 25 |
| EN AW-2011 | T4 | 275 | – | 125 | – | 12 |
| T6 | 310 | – | 230 | – | 6 | |
| EN AW-2014 | O | – | 250 | – | 135 | 10 |
| T4 | 370 | – | 230 | – | 11 | |
| T6 | 415 | – | 370 | – | 5 | |
| EN AW-2024 | O | – | 250 | – | 150 | 10 |
| T3,T3510,T3511 | 395 | – | 290 | – | 6 | |
| T8,T8510,T8511 | 455 | – | 380 | – | 4 | |
| EN AW-3003 | F | 95 | – | 35 | – | 20 |
| O | 95 | 135 | 35 | – | 20 | |
| EN AW-3103 | F | 95 | – | 35 | – | 20 |
| O | 95 | 135 | 35 | – | 20 | |
| EN AW-6101A | T6 | 200 | – | 170 | – | 8 |
| EN AW-6005 | T4 | 180 | – | 90 | – | 13 |
| T6 | 270 | – | 225 | – | 6 | |
| EN AW-6351 | O | – | 160 | – | 110 | 12 |
| T4 | 205 | – | 110 | – | 12 | |
| T6 | 290 | – | 250 | – | 6 | |
| EN AW-6060 | T4 | 120 | – | 60 | 14 | 12 |
| T5 | 160 | – | 120 | – | 6 | |
| T6 | 190 | – | 150 | – | 6 | |
| T64 | 180 | – | 120 | – | 10 | |
| T66 | 215 | – | 160 | – | 6 | |
| EN AW-6061 | O | – | 150 | – | 110 | 14 |
| T4 | 180 | – | 110 | – | 13 | |
| T6 | 260 | – | 240 | – | 6 | |
| EN AW-6063 | O | – | 130 | – | – | 16 |
| T4 | 130 | – | 65 | – | 12 | |
| T5 | 175 | – | 130 | – | 6 | |
| T6 | 215 | – | 170 | – | 6 | |
| T66 | 245 | – | 200 | – | 6 | |
| EN AW-6082 | O | – | 160 | – | 110 | 12 |
| T4 | 205 | – | 110 | – | 12 | |
| T5 | 270 | – | 230 | – | 6 | |
| T6 | 290 | – | 250 | – | 6 | |
