Aluminium Coils in Coimbatore

Aluminium Coils in Coimbatore, ASME SB209 Aluminium Coils Stockist in Coimbatore, Aluminium Coils Supplier in Coimbatore.

Aluminium Coils in Bangalore

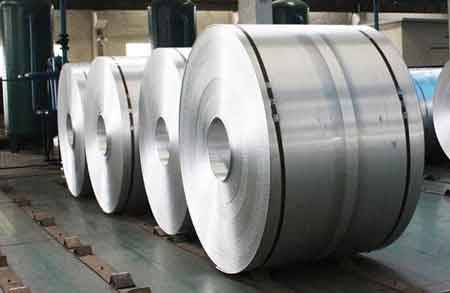

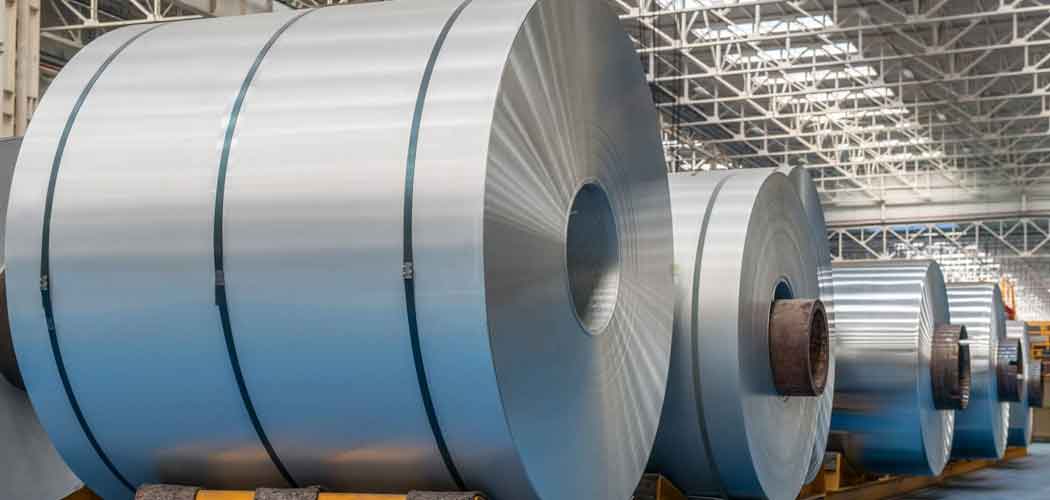

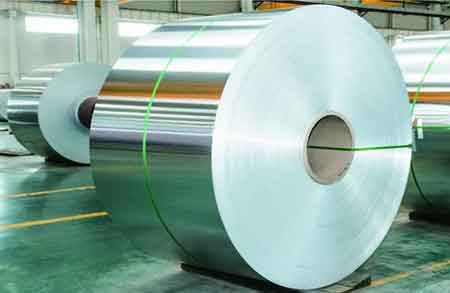

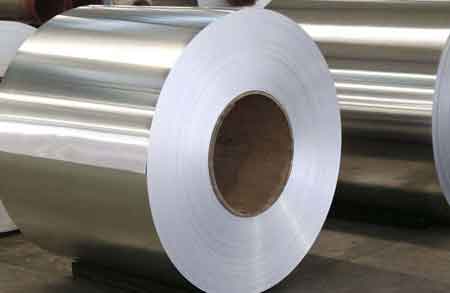

Aluminium coil is a long, continuous strip of metal that is rolled into a coil shape for ease of handling, storage, and transportation. It is made by passing aluminium through rolling mills multiple times to give it the required thickness and then winding it into large rolls. Jagdish Metal is a leading Aluminium Coil Supplier in Coimbatore. With a strong commitment to quality and customer satisfaction, our products are manufactured in compliance with international standards, ensuring reliability and high performance. As an ISO 9001:2008 certified company, we ensure excellent quality control throughout our operations.

Our aluminium coils offer excellent resistance to corrosion, making them ideal for harsh environmental conditions. The lightness of aluminium makes it ideal for use in the automotive and aeronautical industries, whereas its higher conductivity is desirable in electrical and heat-exchange uses. Moreover, these coils are simple to shape and fabricate and can be processed smoothly according to various manufacturing requirements. Aluminium coils are widely used in construction, packaging, transportation, and industrial sectors, meeting the demands for strength and efficiency.

We provide aluminium coils in various specifications to meet the specific requirements of our clients. The thickness varies between 0.2 mm and 2.0 mm, and the width ranges between 600 mm and 2000 mm. We manufacture our products according to international standards to ensure maximum performance and longevity. If you need aluminium coils for structural or industrial applications, we ensure that every coil is engineered to provide maximum efficiency and reliability.

We prioritize quality and secure packaging to prevent any damage during transit. Our testing processes include tensile strength tests, hardness tests and corrosion resistance tests to ensure optimum quality. With our vast industry experience, we efficiently manage bulk orders, delivering our clients with high-quality products in the minimum possible time.

Aluminium Coils Specification in Coimbatore

Standards : ASTM B209 / EN573 / JIS H4000

Temper : H14, H24, H32, H112, O, T6

Thickness : 0.2 mm to 6 mm

Width : 100 mm to 2,000 mm (standard: 1220 mm or 1500 mm)

Length (for sheet cut) : Coil form / as required

Surface Finish : Mill Finish, Bright, Anodized, Coated

Coating (Optional) : PE/PVDF Color Coating (for roofing etc.)

Edge Type : Mill Edge / Slit Edge

Weight : 1 to 3 tons per coil (customisable)

Inner Diameter (ID) : 150 mm / 300 mm / 508 mm

Outer Diameter (OD) : Up to 1800 mm

Type of Aluminium Alloy Coils in Coimbatore

Aluminium Coils in Coimbatore
1100 Aluminium Coils in Coimbatore
Aluminium Coils in Coimbatore
1200 Aluminium Coils in Coimbatore
Aluminium Coils in Coimbatore
5005 Aluminium Coils in Coimbatore
Aluminium Coils in Coimbatore
5081 Aluminium Coils in Coimbatore
Aluminium Coils in Coimbatore
5083 T6 Aluminium Coils in Coimbatore
Aluminium Coils in Coimbatore
5086 Aluminium Coils in Coimbatore

Specifications for Aluminium Coils Coimbatore

European Standard BS (OLD) USA (AA) GERMANY (DIN) ISO IS Canadian
EN AW-1050 A 1E 1050 Al99.5 Al99.5 19500, 19501 1 S
EN AW-1070 A – 1070 Al-99.7 Al-99.7 19700 –
EN AW-1100 IC 1100 Al-99.0 Al-99.0 19000 2 S
EN AW-2011 FC1 2011 AlCuBiPb AlCu6BiPb – 28S
EN AW-2014 HE15 2014 AlCuSiMn AlCu4SiMg 24345 B26S
EN AW-2024 – 2024 AlCuMg2 AlCu4Mg1 – 24 S
EN AW-3003 N3 3003 AlMnCu AlMn1Cu 31000 3 S
EN AW-3103 – 3103 – AlMn1 – –
EN AW-6101A E91E 6101 E AlMgSi 0.5 E AlMgSi(A) 63401 D50S
EN AW-6005 – 6005 AlMgSi0.7 AlSiMg 62400 C51S
EN AW-6351 HE30 6351 AlMgSi1 AlSiMg0.5Mn 64430 B51S
EN AW-6060 – 6060 AlMgSi 0.5 AlMgSi – –
EN AW-6061 HE20 6061 AlMgSiCu AlMg1SiCu 65032 65S
EN AW-6063 HE9 6063 AlMgSi0.5 AlMg0.7Si 63400 50S
EN AW-6082 HE30 6351 AlMgSi1 AlSi1MgMn 64430 B51S

Chemical Composition of Aluminium Coils Coimbatore

Alloy Si % Mg % Mn % Cu % Fe % Cr % Zn % Ti % Others % Al
EN AW-1050 A 0.25 Max 0.05 Max 0.05 Max 0.05 Max 0.40 Max – 0.07 Max 0.05 Max – 99.5 Min
EN AW-1070 A 0.20 Max 0.03 Max 0.03 Max 0.03 Max 0.25 Max – 0.07 Max 0.03 Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – Bi: 0.20 – 0.60 Pb: 0.20 – 0.60 Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 - 1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 - 1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder

Mechanical Properties of Aluminium Coils Coimbatore

Alloy Temper UTS (Mpa) Minimum UTS (Mpa) Maximum Yield Strength (Mpa) Minimum Yield Strength (Mpa) Maximum Elongation (%) A 50mm (Minimum)
EN AW-1050 A F 60 – 20 – 23
EN AW-1050 A O 60 95 20 – 23
EN AW-1070 A F 60 – 20 – 23
EN AW-1100 O 75 110 – – 25
EN AW-2011 T4 275 – 125 – 12
EN AW-2011 T6 310 – 230 – 6
EN AW-2014 O – 250 – 135 10
EN AW-2014 T4 370 – 230 – 11
EN AW-2014 T6 415 – 370 – 5
EN AW-2024 O – 250 – 150 10
EN AW-2024 T3, T3510, T3511 395 – 290 – 6
EN AW-2024 T8, T8510, T8511 455 – 380 – 4
EN AW-3003 F 95 – 35 – 20
EN AW-3003 O 95 135 35 – 20
EN AW-3103 F 95 – 35 – 20
EN AW-3103 O 95 135 35 – 20
EN AW-6101A T6 200 – 170 – 8
EN AW-6005 T4 180 – 90 – 13
EN AW-6005 T6 270 – 225 – 6
EN AW-6351 O – 160 – 110 12
EN AW-6351 T4 205 – 110 – 12
EN AW-6351 T6 290 – 250 – 6
EN AW-6060 T4 120 – 60 14 12
EN AW-6060 T5 160 – 120 – 6
EN AW-6060 T6 190 – 150 – 6
EN AW-6060 T64 180 – 120 – 10
EN AW-6060 T66 215 – 160 – 6
EN AW-6061 O – 150 – 110 14
EN AW-6061 T4 180 – 110 – 13
EN AW-6061 T6 260 – 240 – 6
EN AW-6063 O – 130 – – 16
EN AW-6063 T4 130 – 65 – 12
EN AW-6063 T5 175 – 130 – 6
EN AW-6063 T6 215 – 170 – 6
EN AW-6063 T66 245 – 200 – 6
EN AW-6082 O – 160 – 110 12
EN AW-6082 T4 205 – 110 – 12
EN AW-6082 T5 270 – 230 – 6
EN AW-6082 T6 290 – 250 – 6
